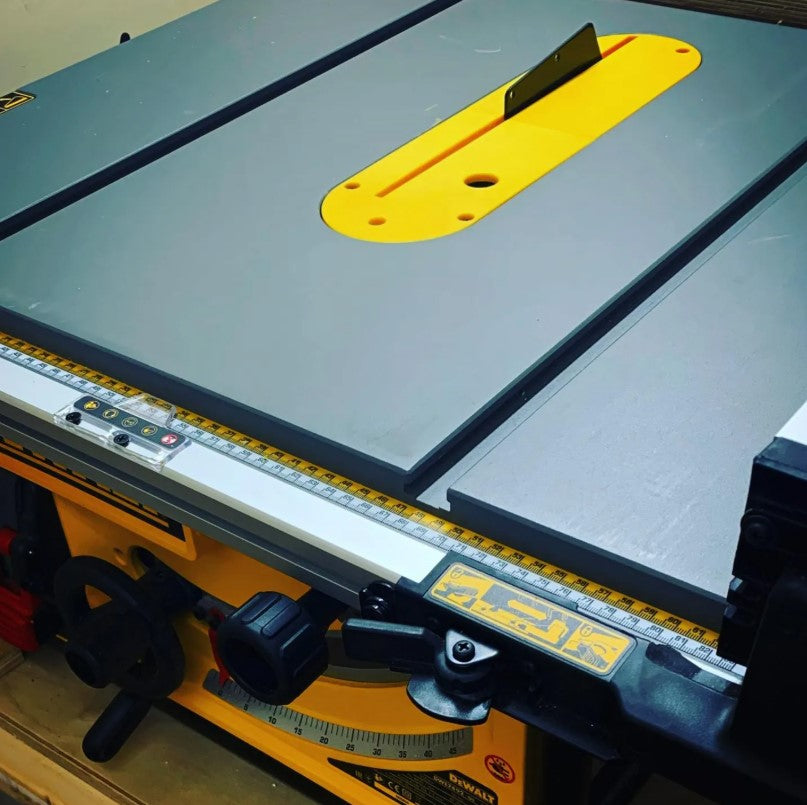

DeWalt DWE7492-QS / DWE7491-RS Table Saw Insert Plate – Throat Plate Replacement

Restore your table saw performance with this replacement insert plate designed for DeWalt DWE7492-QS and DWE7491-RS table saws. This insert provides a precise fit and offers a near zero-clearance opening, improving cut quality while maintaining reliable blade clearance.

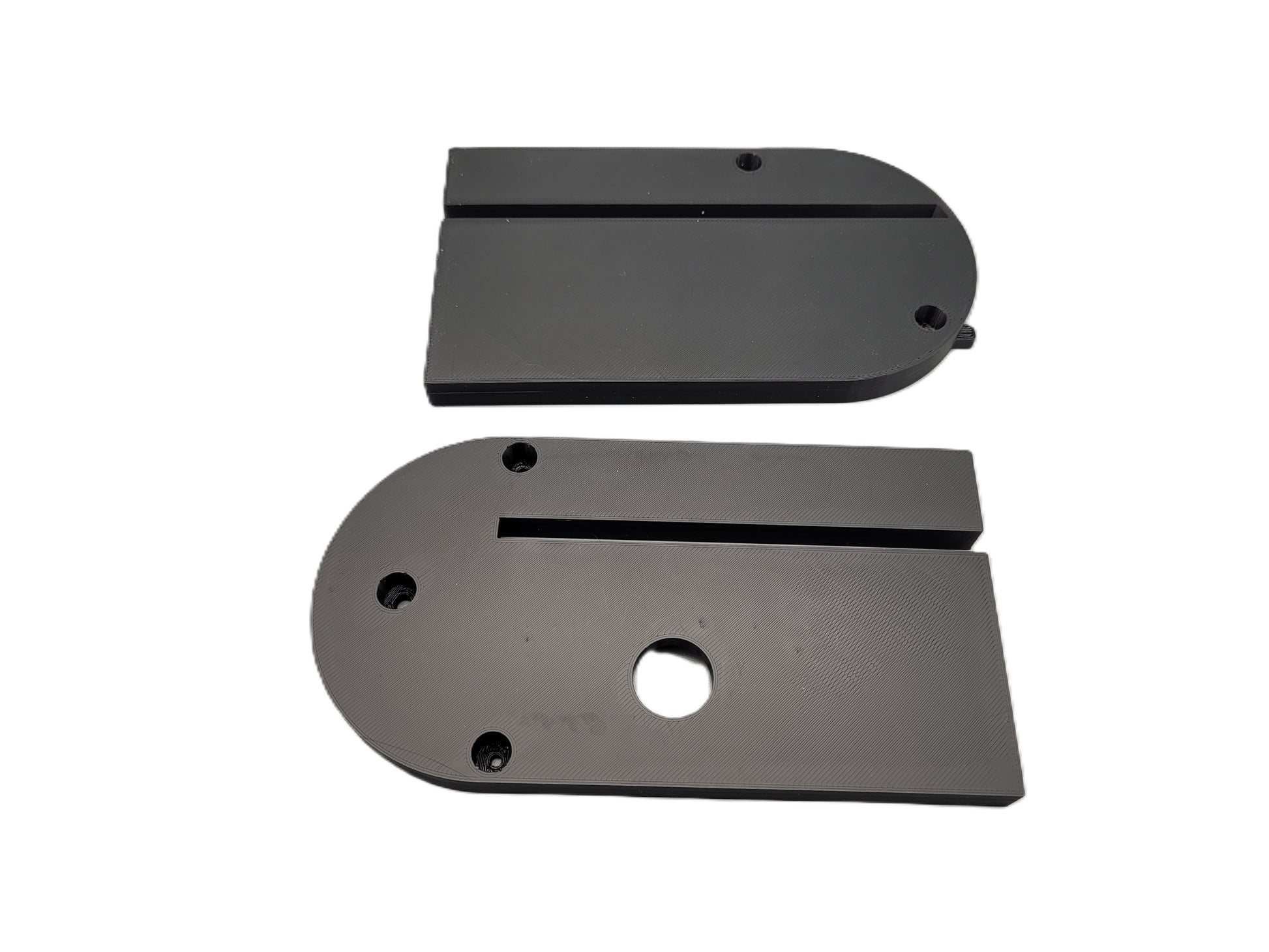

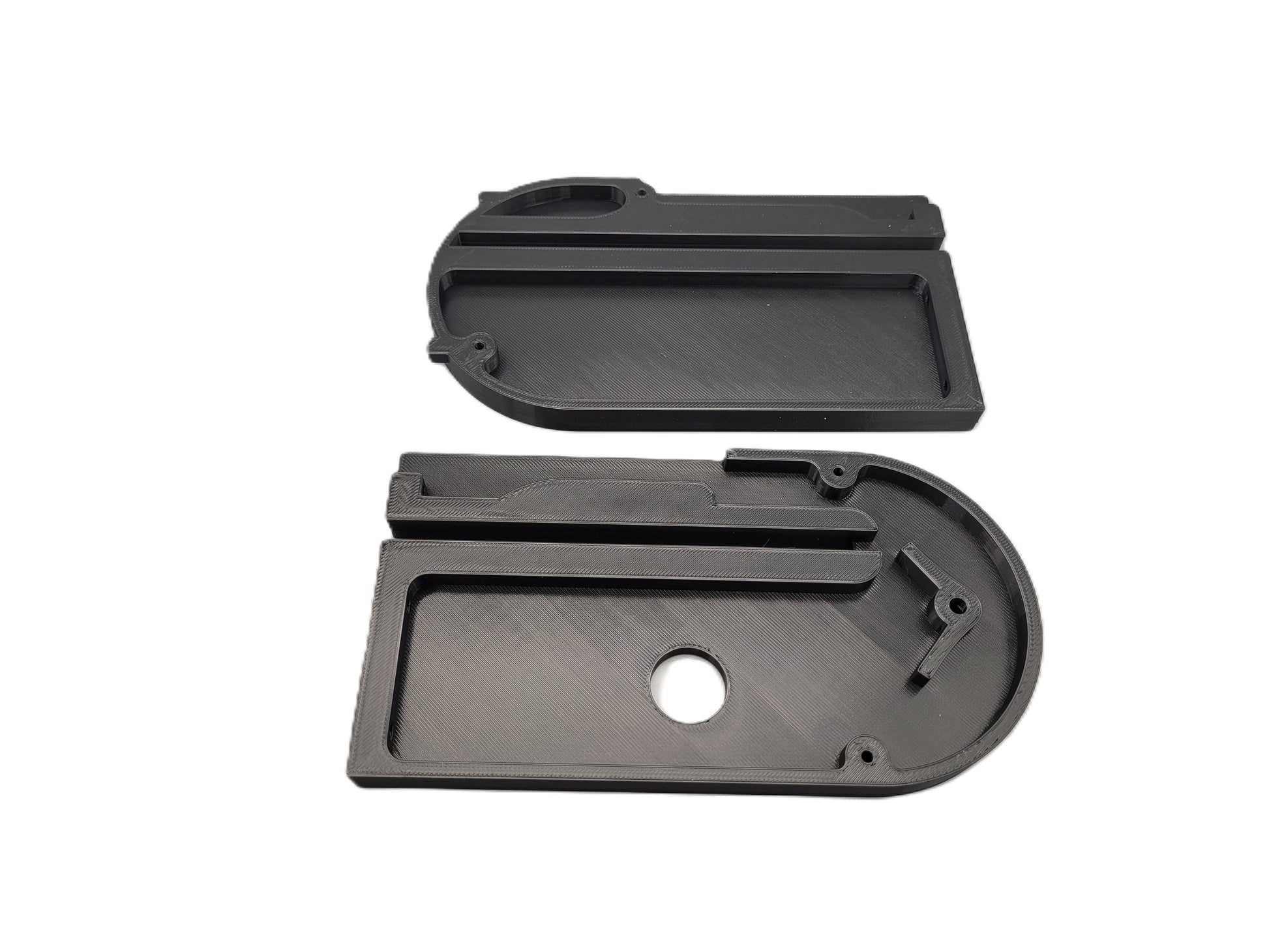

The insert is designed as a two-piece construction to allow easy and reliable 3D printing on standard build plates without compromising strength or accuracy. Once assembled, it provides excellent workpiece support and helps reduce tear-out during cutting operations.

✔ Key Features:

• Compatible with DeWalt DWE7492-QS and DWE7491-RS table saws

• Near zero-clearance opening for improved cutting results


• Improves material support and helps reduce splintering

• Strong and durable assembled construction

• Direct replacement for damaged or worn factory inserts

🔧 Assembly Instructions:

The insert is printed in two parts and must be assembled before use.

Required Hardware (Optional but Recommended):

• 3x M3 screws (20mm length)

• 3x M3 nuts

• Superglue or suitable plastic adhesive

Assembly Steps:

1. Align both printed parts carefully.

2. Apply superglue or plastic adhesive along the joining surfaces (optional but recommended).

3. Secure the parts together using three M3x20mm screws and nuts.

4. Allow adhesive to fully cure before installing in the saw.

⚠ Important Notes:

• This is a near zero-clearance insert, not a fully zero-clearance version.

• Always ensure the insert sits flat and flush with the saw table before operation.

• Check for blade clearance before turning on the saw.

• Follow all standard table saw safety procedures during use.

🪵 Ideal For:

• Replacing broken or damaged insert plates

• Improving cut finish quality

• Supporting smaller workpieces

• General woodworking, furniture making, and DIY projects

This replacement insert provides a reliable and practical solution for keeping your DeWalt table saw operating safely and accurately.
