BMW E30 / E34 Odometer Gear Repair Kit (KM/H) – 12T + 43x16 + 39x28 – VDO Speedometer Fix Set

Brand new odometer repair gear set designed to fix non-working mileage counters in BMW instrument clusters.

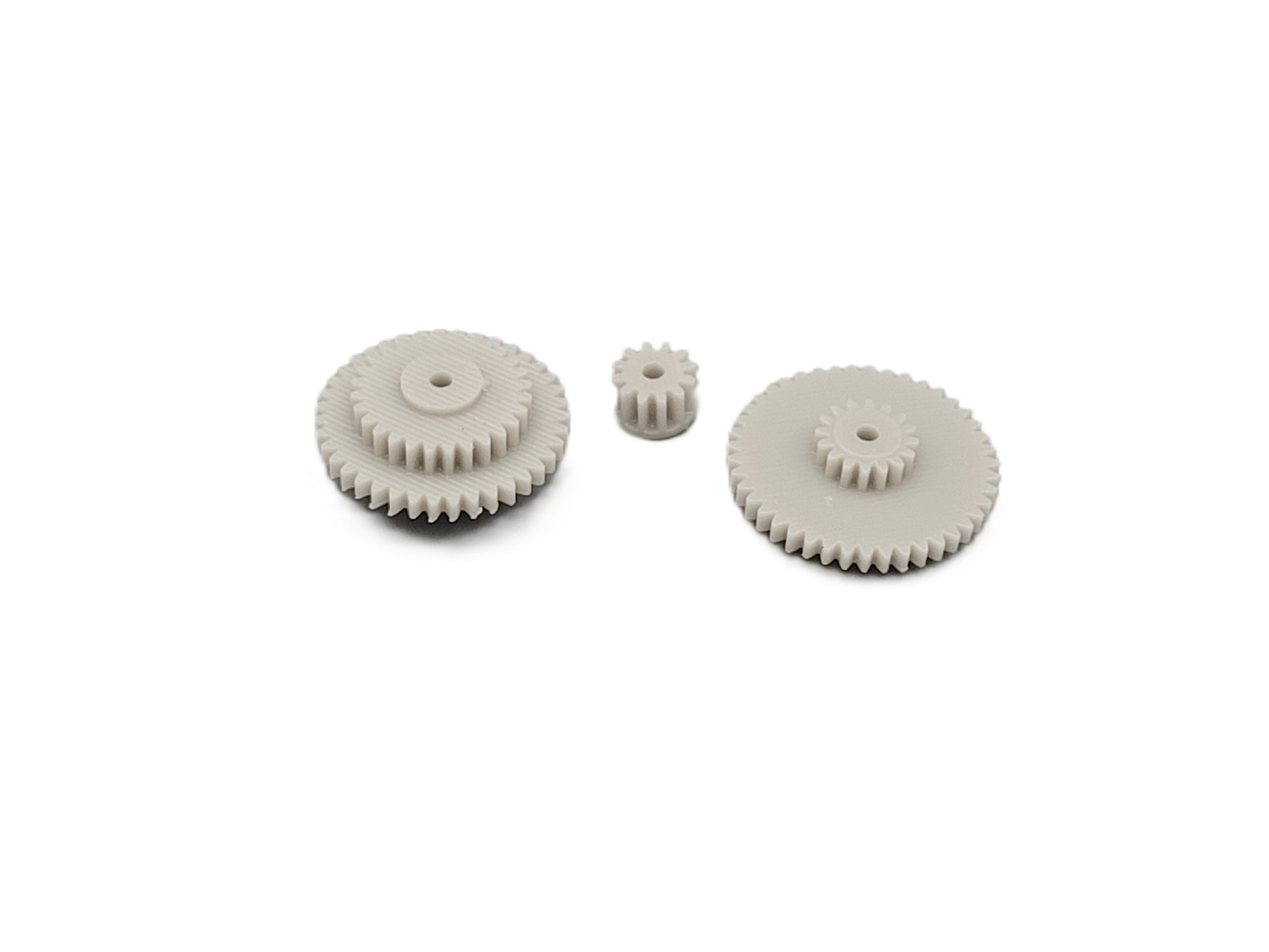

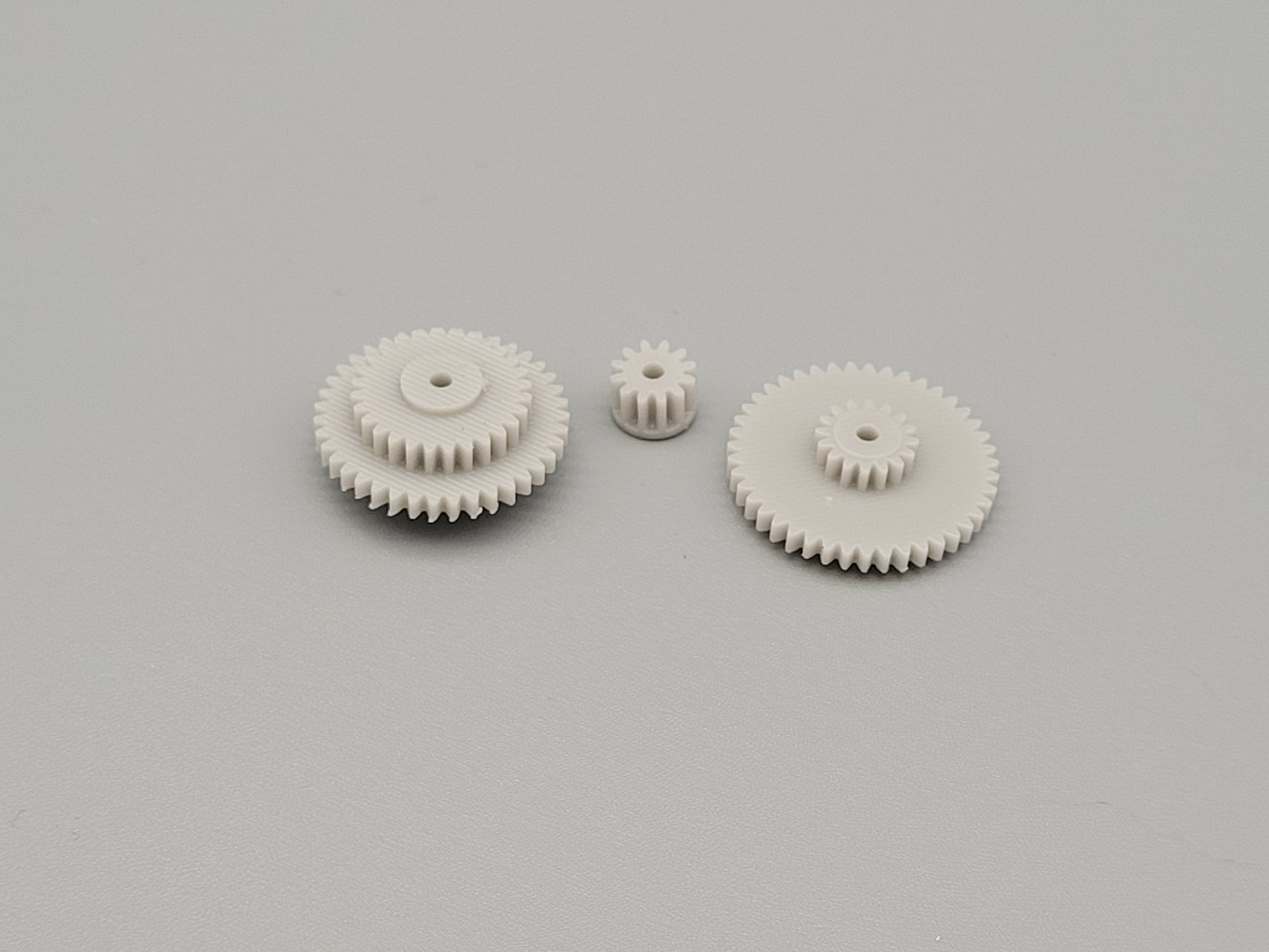

This set includes:

• Gear 1: 12 teeth (drive gear)
• Gear 2: 43x16 teeth
• Gear 3: 39x28 teeth

Compatible with VDO electronic speedometers (240 km/h) calibrated in KM/H (European specification).

🚗 Compatibility

Fits BMW models equipped with VDO clusters, including:

• BMW E30: 316i, 318i, 320i
• BMW E34: 520i

⚠️ Important: Fitment depends on internal gear configuration, NOT only vehicle model.

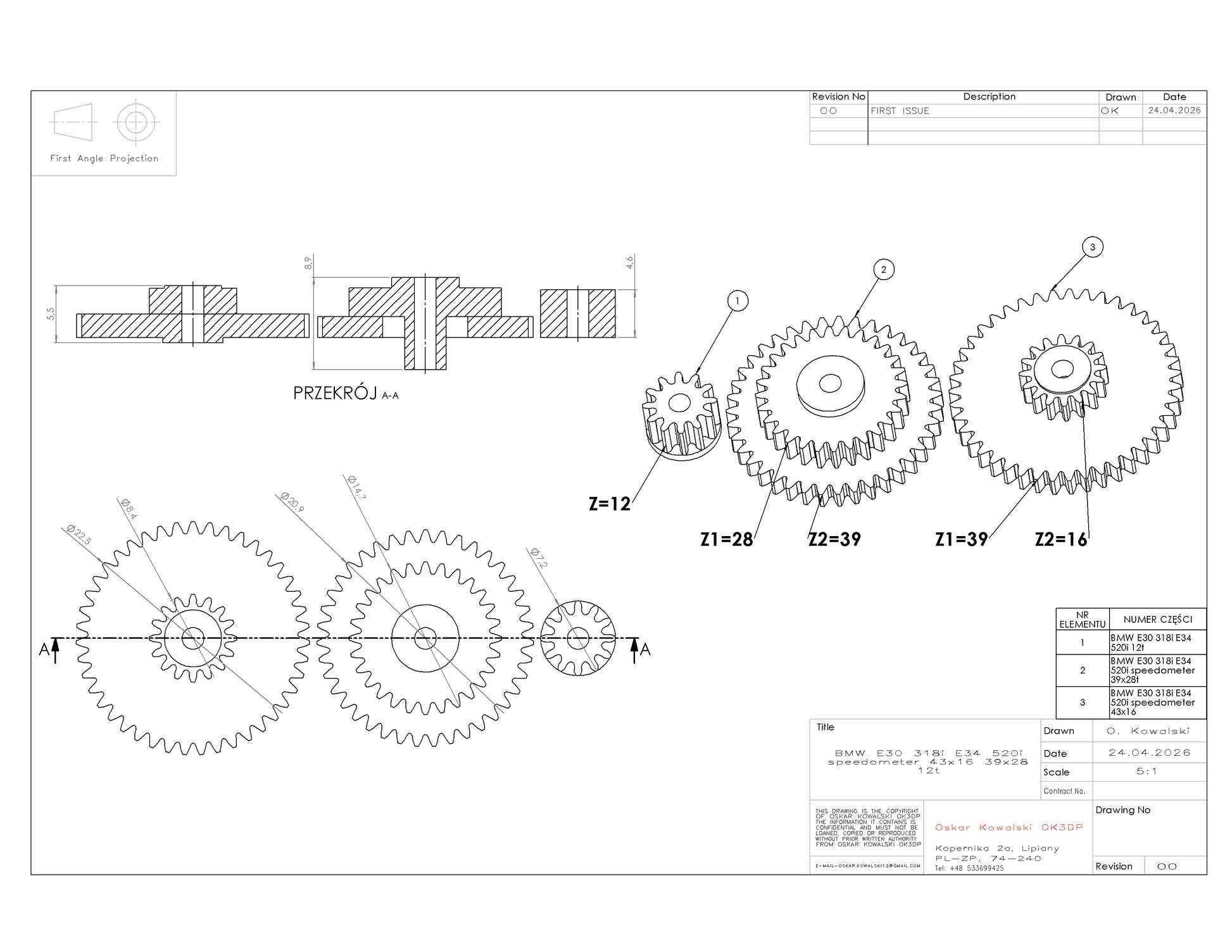

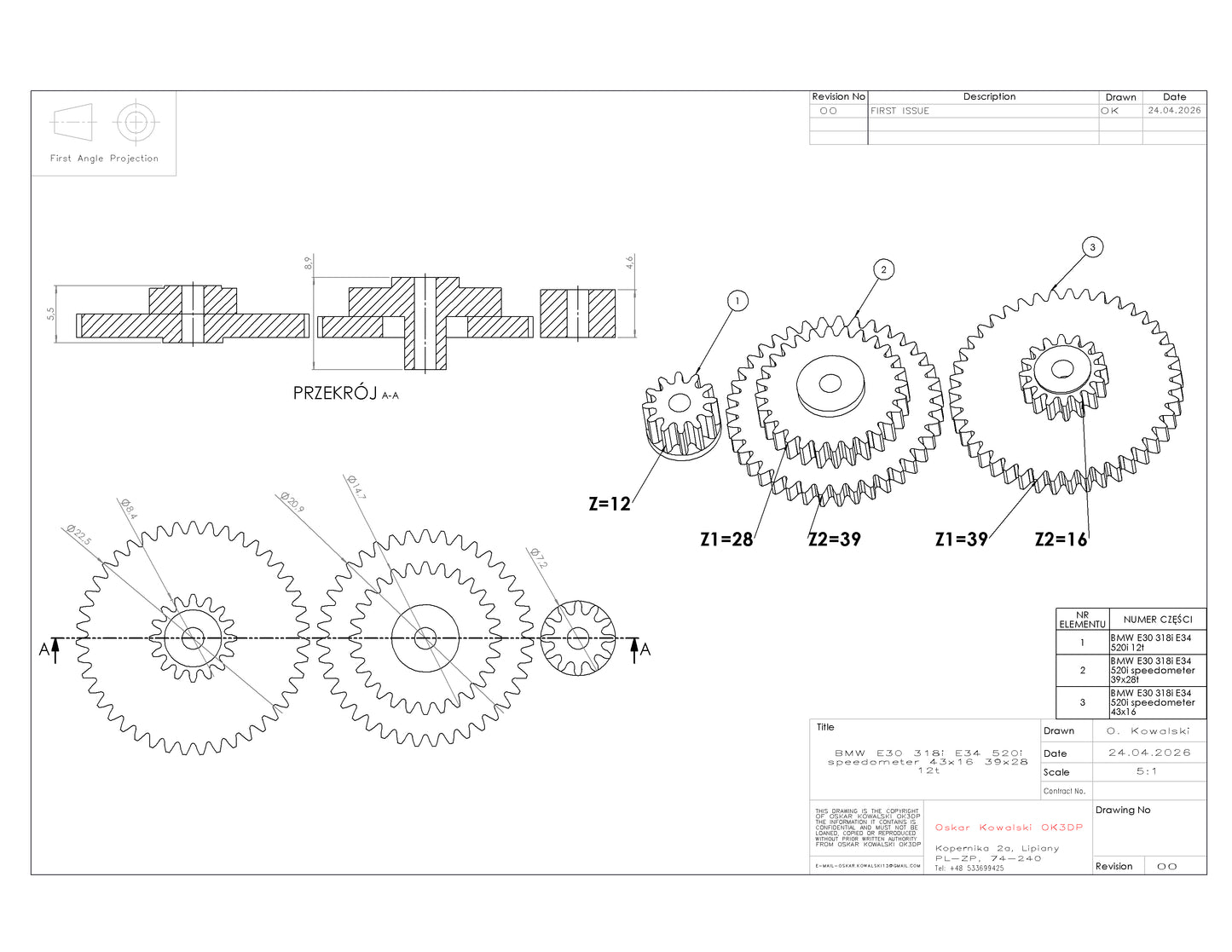

📏 Dimensions (approx.)

• 48T gear OD: ~23.7 mm
• 39T gear OD: ~20.9 mm
• 12T gear OD: ~7 mm
• Bore: 2.05 mm

🔄 Available Variants (for reference)

Different odometer versions use different gear combinations:

A: 12 | 44x16 | 40x22
B: 12 | 44x16 | 40x28
C: 12 | 44x17 | 38x23
D: 12 | 44x17 | 38x28
E: 12 | 43x16 | 39x28 ✅ (THIS SET)
F: 12 | 43x17 | 39x28
G: 12 | 43x17 | 40x34
H: 12 | 44x16 | 40x34

⚠️ Before You Buy

• You MUST verify the tooth count before purchase
• Remove the instrument cluster and inspect the gears physically
• Vehicle model alone is NOT sufficient for correct selection

🛠️ Why Do Odometers Fail?

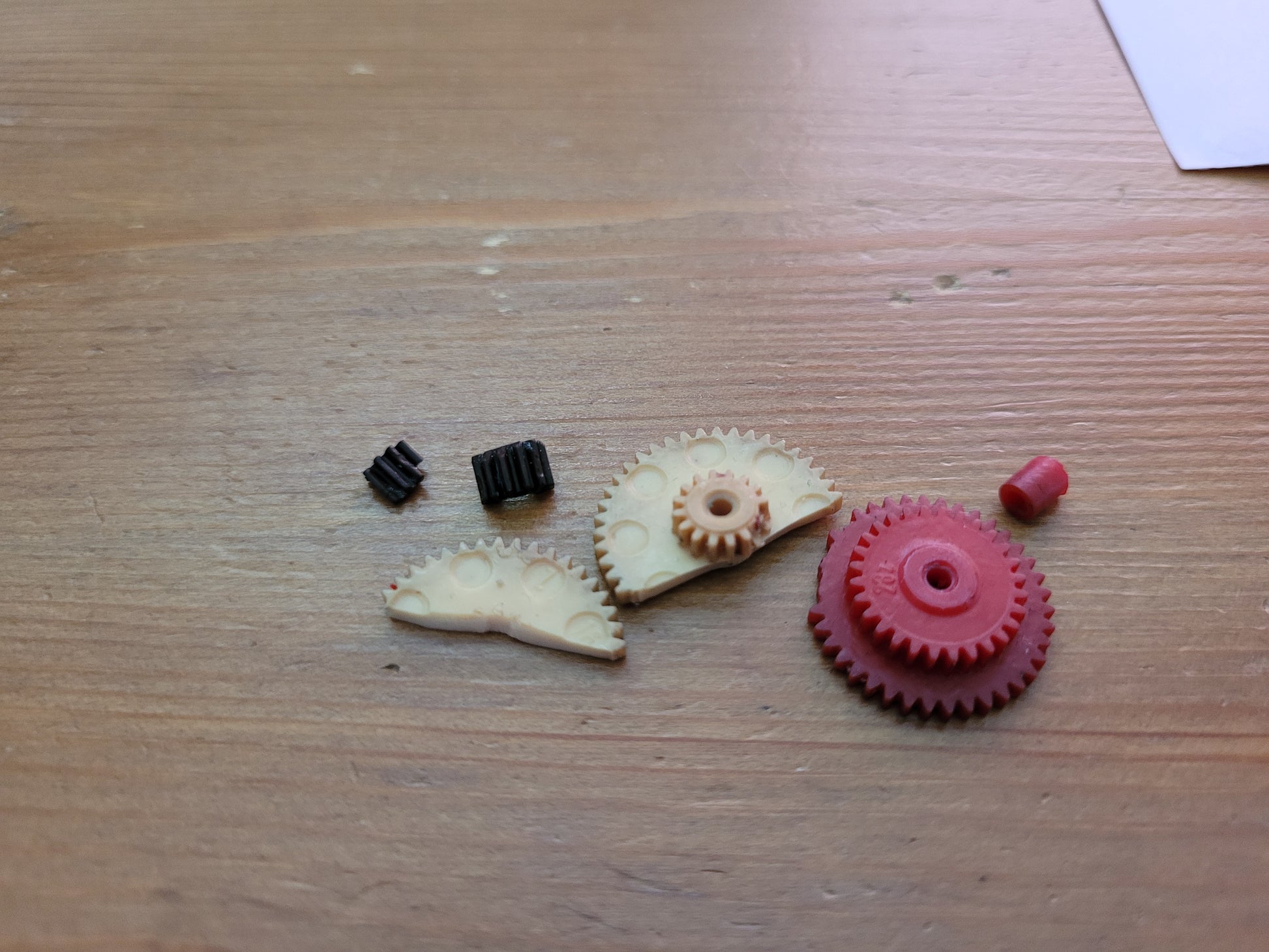

In most cases, failure is caused by cracked or worn plastic gears, which stop the mileage counter.

💡 Installation Recommendation

We strongly recommend replacing all gears as a complete set:

• Old gears become brittle over time
• Replacing only one gear often leads to another failure shortly after

📌 Important Notes

1. Check if your unit is VDO or MotoMeter before ordering
2. Gear configuration depends on:
   • gearbox type
   • engine version
   • production year
   • wheel size

✔️ In all versions, the first gear is always 12 teeth
